BEVEL GEAR ACTUATORS Overview

Bevel gear actuators are engineered for multiturn operations and are primarily utilized in gate and globe valves, along with other linear valve systems. Our MAB (Mechanical Actuator Bevel) Series is specifically developed to meet the demanding requirements of industries such as Oil & Gas, Power, Water, Marine, and Steel, including critical applications in power plants and processing facilities. With a broad selection of material construction options, these actuators are ideally suited for critical valve operations, delivering dependable performance in harsh and challenging environments. Features: Standard Output Torque Range - 250 to 18,000 Nm with Gear Reduction Attachment Output Thrust Range - 75 to 2500 KN with Gear Reduction Attachment IP Rating - IP55, IP65, IP67M and IP68 Temperature Range Standard -20ºC to +80ºC Housing - Ductile Iron Input Shaft - Steel Bearing Construction Epoxy & PU Coating for Housing and Powder Coated Hand Wheel. Optional: Temperature Range Low Temperature -45ºC to +100ºC High Temperature -70ºC to +120ºC Housing - Cast Iron Input Shaft - Stainless Steel Special Painting System provided for Marine Application and Offshore Requirements

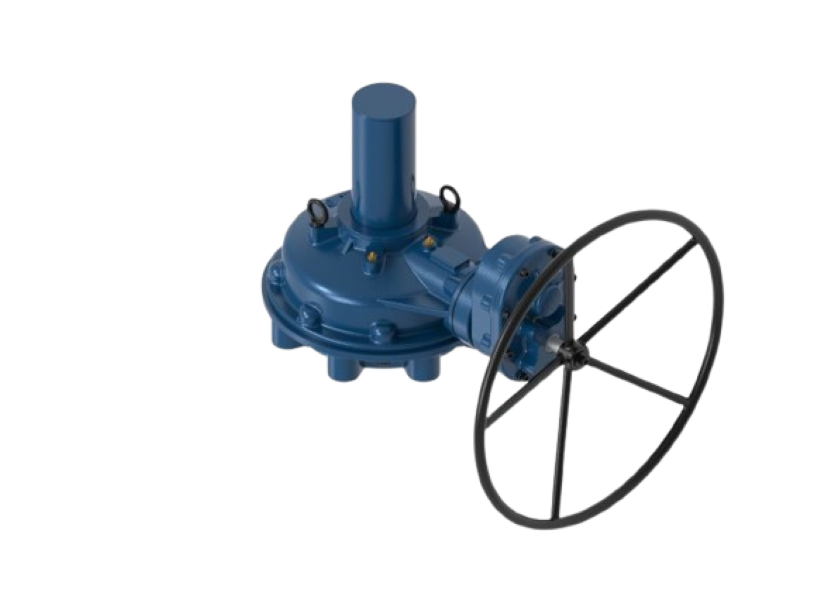

MAB Series is a Bevel Gear design, predominantly used for the manual operation of rotary and linear multi-turn valves, including Gate, Globe, and Plug Valves. It offers a thrust range extending from 75KN to 5000 KN and comes with a full set of accessories.
